First off big thanks to Cometman! With out him I would have never even conceived of doing this! After months of looking I finally found and scored a good deal on a new gauge cluster. It was the correct part number off just the right bike! Like cometman said it is truely a plug and play type deal.

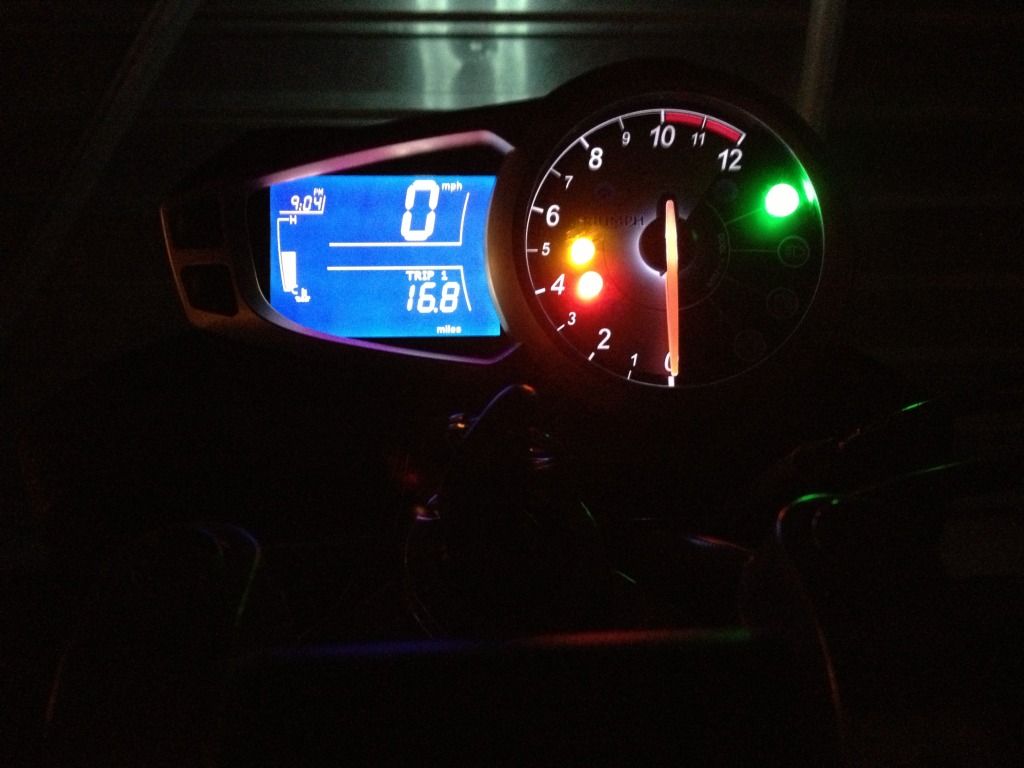

It is big time sleeker than the old unit. The flashing blue shift LED's are seriously OFF THE HOOK!!! Me and the wifey rode to a meet up tonight and this thing is amazing at night!!! I could barely keep my eyes on the road!

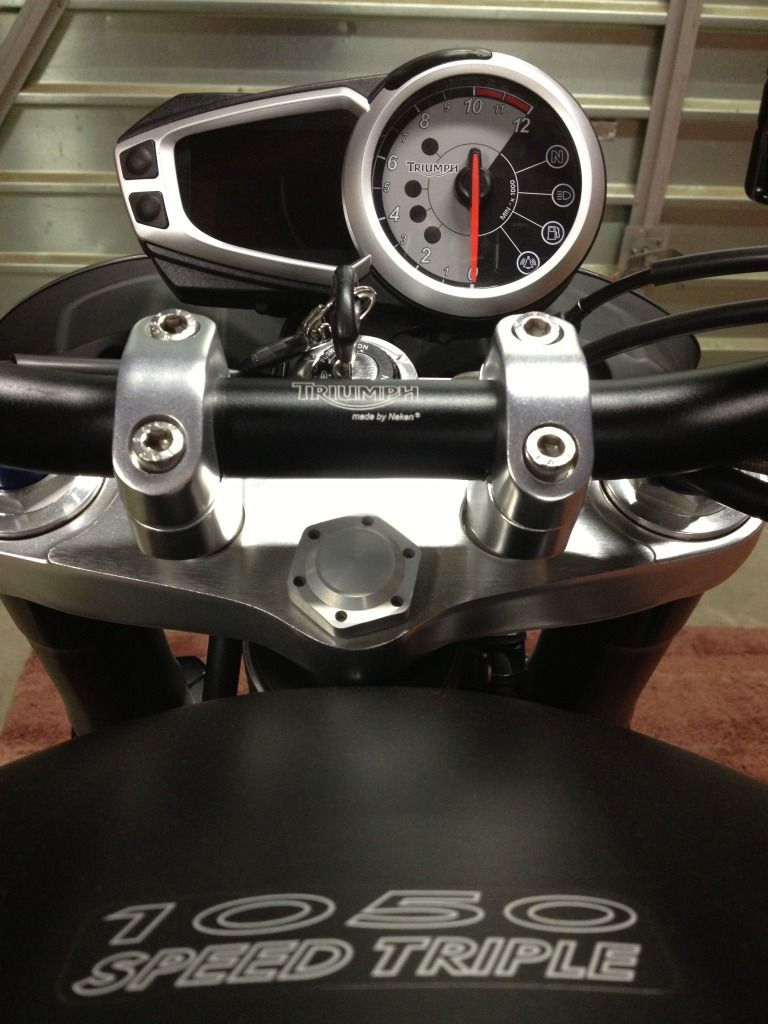

Here are a few pics:



[Lord Flashheart]

<green> Solid work, sir.



[Martin_R]

First off big thanks to Cometman! With out him I would have never even conceived of doing this!

+1.

My 2009 bike with the same gauges as you and CometMan used, topped off with a 2011+ tacho face (please ignore the ghetto style temporary monitoring rig in the foreground).



[Martin_R]

I love your all black guage face!!! What's the part # on that?

Let's answer here, to keep the discussion with the pic.

No part number for tacho face, you will have to hunt eBay/breakers for a broken gauge with tacho face intact. Or have a printing shop do you a custom printout. But I do not know if a gauge shop can replicate the sandwich design & see-through illumination? Most likely you would lose that feature if you just glue a custom print on top of OEM.

Anyway, the fascias and tacho face assys of the similar shape 1050/675 gauges seem to interchange directly. Exact same shape on the clear plastic base (under the face print that tunnels light from the circuitboard LEDs). Some faces just miss a few LED holes.



[jimmyheadgear]

Martin

I can't find a fascia for mine.

Triumph says there are no part numbers for just the fascia, I would need to buy the whole cluster. They say this is the case with the Street as well as the Speed.

Does this sound right?



[Martin_R]

Yes, unfortunately that seems to be what I am hearing too. The separate spare part fascia is available only for older gauge shape.

Hunting breakers for a dead gauge set with OK 675/1050 fascia seems to be the only option.

I don't know why Triumph chose to go this way on 2011+ gauge shape. The fascia is an easily detachable part, so why not offer this as a spare part?



[CometMan]

Martin

I can't find a fascia for mine.

Triumph says there are no part numbers for just the fascia, I would need to buy the whole cluster. They say this is the case with the Street as well as the Speed.

Does this sound right?

daytona 675r/street triple fascia part number T2501502

this part doesnt exist?

thanks guys it looks great on your triples glad you all got 1, too bad the top speed function is gone in these clusters...miss that one, but the looks compensate for that

jimmy i will continue whit my eyes open on ebay since i search every day

i spotted some months ago in a italian forum a damaged eletronics 2011 cluster but whit the fascia intact, i will try to find the sale thread and see if it was sold.



[jimmyheadgear]

daytona 675r/street triple fascia part number T2501502

this part doesnt exist?

thanks guys it looks great on your triples glad you all got 1, too bad the top speed function is gone in these clusters...miss that one, but the looks compensate for that

That's the 3 button.



[jimmyheadgear]

Thanks for the help, Comet!!



[09 Triple]

I've been thinking about this mod for awhile now; since I saw the newer "old bikes" that switched over to them
My question though is DFUSEME is that the last generation's tachometer/cluster? Is that the "plug n play" magic?
That would mean, to me, the current gen's tachs are not plug n play. Yes?
And MartinR is that a last gen tach but with only the face of the tach updated to 11? I understand that right? How difficult is that last part of the swap? Does the cover/weather sealing open easily? Or is it a heat and re-glue of operation?
Thanks all in advance.



[jimmyheadgear]

09 Triple

You'll need a 2 button cluster off a late model round headlight bike. The clusters off the new headlight bikes won't work in an 08-10 round headlight bike. They are not plug and play.

Does that help?



[09 Triple]

It does that sir, thank you!



[Martin_R]

And MartinR is that a last gen tach but with only the face of the tach updated to 11? I understand that right?

Yes. Like Jimmy said, only the last batch round headlight bikes of 2010 had a new shape gauge that is plug & play for older 08-10 bikes.

How difficult is that last part of the swap? Does the cover/weather sealing open easily? Or is it a heat and re-glue of operation?

No glue or heat involved. Only screws.

Fiddly part is that you have to remove tacho needle by prying with 2 spoons. It's only a push fit onto the electric motor. On reinstall you probably have to do multiple tries on refitting & checking with power, so that you get needle to sit at zero. It's a bit of an trial & error affair as the motor always moves the needle a hair.

But all in all very easy operation.

Edit. Have a look at this Hayabusa thread, our Triple gauges are by same manufacturer and with similar construction:
http://www.hayabusa.org/forum/gener...installation-walk-through-dashlight-leds.html



[09 Triple]

Excellent Martin thank you.



[Kreuzwieser]

Can someone please post the part # for the early '11 new style gauges for the '08-'10 S3?

Thanks!



[jimmyheadgear]

Mine is T2503130.



[DieselGeek]

Is this valid for the 2005-7 as well ?



[Martin_R]

^If you can find a 08-10 owner to try his clocks on your bike, you could verify. If the 08+ clocks work, then the 2010 SE clocks will as well. Or more importantly if your bike ECU allows starting with the 08+ gauges - that seems to be the main issue.

Even the 2011+ clocks seem to share most of the same functions, it is just some ECU request-response annoyance coded by Triumph, that will prevent bike from starting. I tried late bike clocks on 2009 bike and they work OK if I first start bike with original clocks and hot-plug the later in. But bike will not start if late clocks are plugged in while cranking.



[DieselGeek]

My bike will start and run without clocks all together , so no problem there.

I'll keep my eyes peeled



[Kreuzwieser]

Thank you!!
