Speed Triple Forum Rants and ravings about the best naked triple on the planet!

Reply

LinkBack Thread Tools Display Modes
Old 07-04-2007, 08:32 PM   #1 (permalink)
Senior Member
Powerbike
Main Motorcycle: '06 S3

dfib's Avatar

Join Date: Feb 2006
Location: Right here!
Posts: 333
Exhaust Thread

So you want exhaust but don't know where to start? This may answer some questions.
FYI - All prices are in USD, you may be able to find the exhaust you want cheaper than the links below. EBAY is always a good place to look.


TORS (Triumph Off-Road Silencers)

Available from: You local Triumph dealer. Part# A960828
Cost: $500
Weight savings: 0.3kg
Performance gain: 5hp
Tune needed: TORS tune from dealer or Tuneboy tunes 20102, 20103, 20112, 20128, 20174, 20170 or 20088 depending on bike year, VIN# and other mods.
Sound/vid clip: Download


Arrow 3 into 1

Available from: Triumph Part# A9600195
Cost: $1300
Weight savings: 8kg
Performance gain: 3hp?
Tune needed: Arrow tune from dealer or Tuneboy tunes 20133, 20134, 20131, 20132, 20181, or 20182 depending on VIN# and other mods
Sound/vid clip: HERE

Arrow Dual Hi-Mount CF/Ti

Available from: Red Racing
Cost: $800-900 with arrow mid-pipe
Weight savings: ~5kg
Performance gain: ~4hp
Tune needed: Unk
Sound/vid clip: HERE

Chain Reaction Moto (Old Squids) - Half system replacing mid pipe, with full system in the works.

Available from: Chain Reaction
Cost: $850 for half system, ($40 for optional baffels)
Weight savings: 10.5lbs
Performance gain:
Tune needed: TORs tune from dealer or Tuneboy (Custom tune coming soon)
Sound/vid clip:

Leo Vince

Available from: Leo Vince USA
Cost: $598-782 depending on material
Weight savings: Unk
Performance gain: Unk
Tune needed: Unk
Sound/vid clip: Video
Write up: HERE


MIVV

Available from: Carpimoto (Other styles available at Carpimoto. PJ's Parts)
Cost: $383 from PJ's
Weight savings: 4.1 kg
Performance gain: 7hp and 6 ft-lbs per Carpimoto's dyno chart
Tune needed: Unk
Sound/vid clip: CLIP
Write up: HERE


Trident/Wolf

Available from: New Speed 3
Cost: Slip-ons:$750 CF, $645 SS
Weight savings:
Performance gain: Claimed 7 hp with slip-ons, 12 hp with half system (130hp if DVS's tuning plan is followed!)
Tune needed: TORs will work. Tuneboy users can use THIS after removing pre-cat and SAI!
Sound/vid clip: HERE - Thanks to S3rider for the link.


Eagle
Single:

Dual:

Available from: HERE
Cost: ~$400 single, $675 dual
Weight savings: 7kg claimed
Performance gain: 7hp claimed
Tune needed:
Sound/vid clip:


Barracuda
Available from: SMF Cycles
Cost: $340-740 depending on single or dual, and material
Weight savings:
Performance gain:
Tune needed:
Sound/vid clip:

Renegade
Available from:
Cost:
Weight savings:
Performance gain:
Tune needed:
Sound/vid clip: HERE


Blue Flame

Available from: Blue Flame
Cost: $585-1005 depending on material
Weight savings: 7.2lbs
Performance gain: 6-7hp?
Tune needed: TORs is very close
Sound/vid clip: HERE
APTech's Blue flame Evo Ti

Micron

Available from: Pipe City
Cost: $709-910 depending on color and composition
Weight savings:
Performance gain:
Tune needed:
Sound/vid clip:


Jardine

Available from: New Speed 3
Cost: $399 (aluminum) $650 (CF)
Weight savings: 7.5 lbs
Performance gain: 5 hp claimed
Tune needed: TORs
Sound/vid clip:


Two-Brothers

Available from: Pipe City
Cost: $371 (Al) $465 (CF or Ti)
Weight savings: ~7kg
Performance gain: 7+hp with correct tune
Tune needed: TORs works well enough but Kartstar recommends THIS after removing pre-cat and SAI to really uncork it!
Sound/vid clip: Coming soon.


Staintune

Available from: New Speed 3
Cost: $849
Weight savings: Unk
Performance gain: 9hp claimed
Tune needed:
Sound/vid clip:


Shark
Single:

Dual:

Available from: http://www.delvabikes.be/
Cost: $540 for SS, $919 for Dual CF
Weight savings: Several lbs
Performance gain:
Tune needed: Tuneboy 20088tune_dyno39 has been found to work very well.
Sound/vid clip: Here and Another(Thanks Briank)


Zard
Full system:

Slip-on:

Available from: Zard America
Cost: Starting at $500 for can, $900 for full system.
Weight savings: ~7lbs
Performance gain:
Tune needed: TORs will work, or this tuneboy tune: HERE (unzip to use)
Sound/vid clip: HERE


Bos

Available from: BOS Exhaust Systems
Cost: $650 (aluminum) $840 (carbon)
Weight savings:2.8kg
Performance gain: ~4hp
Tune needed:
No Clip found


GPR


Available from: GPR
Cost:
Weight savings:
Performance gain:
Tune needed:
Sound/vid clip: (Downloads) #1 #2 #3

Devil

Available from: Devil Bike.com
Cost: $799-899 depending on style and material
Weight savings:
Performance gain: ~3-5hp claimed
Tune needed: None, but tuning is recommended
Sound/vid clip: Here


Remus Power Cone

Available from: British Customs
Cost: $559
Weight savings:
Performance gain:
Tune needed:
Sound/vid clip:



GIANNELLI

Available from: Predator Exhaust
Cost: $TBD
Weight savings: "significant"
Performance gain: 3.6hp claimed
Tune needed:
Sound/vid clip:

G&G

Available from: G&G
Cost: Inquire at info@gegbike.com
Weight savings:
Performance gain:
Tune needed:
Sound/vid clip:


D&D
Available from: Coming soon!
Cost:
Weight savings:
Performance gain:
Tune needed:
Sound/vid clip:


No longer available or no information found:
Akrapovic, SIL Motor, ART, Progun,


Still working on filling every thing in. If I missed something, screw up, or you have something I am missing post up!



Thanks!

Lots of exhaust pics here!

[ This message was edited by: dfib on 2007-07-04 19:41 ]
__________________
"And I will not be placed under a microscope worrying about my every word and joke, no matter how clearly I spell them out." - DVS

ΜΟΛΩΝ ΛΑΒΕ
dfib is offline   Reply With Quote Quick reply to this message
Sponsored Links
Advertisement

Old 07-05-2007, 09:14 AM   #2 (permalink)
Senior Member
Powerbike

tsc17's Avatar

Join Date: Jun 2006
Location: Columbus, Ohio
Posts: 321
Leo Vince:

(Based on proper testing techniques)

HP gain: 10.42 @ 7200rpm
Torque gain: 7.56lb/ft @ 7200rpm
Weight savings: 8.5lb
Tune: Custom Dynojet map. As with any bike, your own map is always best (provided it's done by a good tuner).

Leo Vince / Tuning review HERE

Project Bike article with Leo Vince info (and other) HERE

Video Clip HERE
__________________
2006 Speed Triple. Black. Too many mods to list!
tsc17 is offline   Reply With Quote Quick reply to this message
Old 07-05-2007, 12:33 PM   #3 (permalink)
Senior Member
Powerbike

tsc17's Avatar

Join Date: Jun 2006
Location: Columbus, Ohio
Posts: 321

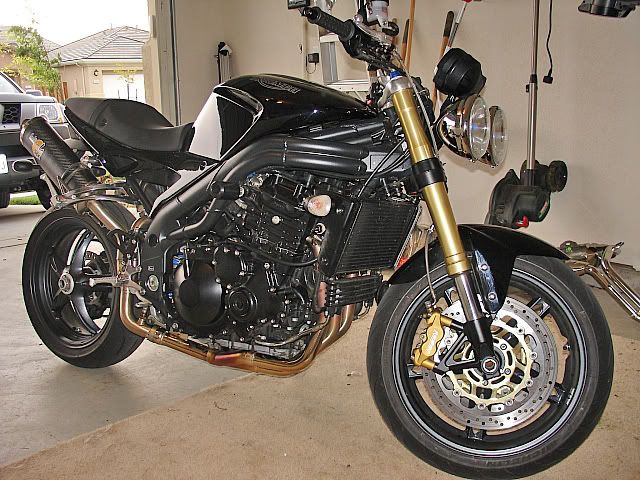

Here's a better photo as well:

__________________
2006 Speed Triple. Black. Too many mods to list!
tsc17 is offline   Reply With Quote Quick reply to this message
Old 07-05-2007, 01:46 PM   #4 (permalink)
New Member
Newbie

Join Date: Jun 2007
Location: Carterton, oxon
Posts: 4
This a Remus Power Cone , you need to use the aftermarket can map to get it to run correctly


[ This message was edited by: L00pyl00 on 2007-07-05 12:53 ]
L00pyl00 is offline   Reply With Quote Quick reply to this message
Old 07-07-2007, 03:30 PM   #5 (permalink)
Senior Member
Formula Extreme
Main Motorcycle: 2006 Triumph Speed Triple

BigRedandRiding's Avatar

Join Date: Jun 2005
Location: NYC / Wayne, NJ, USA
Posts: 441
Other Motorcycle: 2003 Triumph Speedmaster
Nice Thread, Dfib. Notice you used a shot of my bike for the Micron example. :-)

Weight savings should be minimum 5-6kg and the dealer added the tune from Micron during installation.

For those interested, here's a better close up of the Micron Carbon Fiber dual pipes (before I did my tail tidy).

__________________
2006 Speed Triple - Fusion White / Pazzo/Rizoma/K&N/LSL/Motovation/Micron CF Race Cans
2003 Speedmaster - Red & Black / 125/42 Jets/AI Removed/K&N /17T Sprocket/Custom Straight Pipes/Ceramic-Coated Headers
BigRedandRiding is offline   Reply With Quote Quick reply to this message
Old 07-08-2007, 09:20 PM   #6 (permalink)
Member
Grand Prix 250

Join Date: Dec 2006
Location: Yuba City, CA
Posts: 57
Leo Vince all the way!





__________________
"The fear of death is the most unjustified of all fears, for there's no risk of accident for someone who's dead."
--Albert Einstein--
KuwlTriple is offline   Reply With Quote Quick reply to this message
Old 11-17-2007, 07:27 AM   #7 (permalink)
Member
Grand Prix 125
Main Motorcycle: Triumph Speed Triple

trenery's Avatar

Join Date: Oct 2007
Location: Newbury, Berkshire, UK
Posts: 35
Smile Zard slip on - 06 model bike

You need to make sure you get the correct pipe as 06 and 07 models are different. Even though I got the bike in October 07 it's still an 06 bike, so always check. It caught me out. The 06 model has a thread to insert the lambda sensor. This is a UK road legal pipe but you can remove the baffle to generate a bit more noise if you like (luvely jubely ) Trumpet dealers can install a tune for it which makes the bike rub smoother and gets rid of popping on de-acceleration.





trenery is offline   Reply With Quote Quick reply to this message
Old 11-17-2007, 01:03 PM   #8 (permalink)
Senior Member
Supersport 600
Main Motorcycle: 07 speed triple 1050

greasygraeme's Avatar

Join Date: Jul 2007
Location: West Sussex
Posts: 192
Other Motorcycle: K5 Gixxer
i love the look of my M4 can,the sound is awesome,no baffle/db killer to remove,healthy hp and torque gain,

greasy
Attached Thumbnails
Exhaust Thread-my-m4.jpg
__________________
greasygraeme is offline   Reply With Quote Quick reply to this message
Old 01-10-2008, 09:15 AM   #9 (permalink)
New Member
Newbie

Join Date: Jan 2008
Posts: 2
Newbie Question

Hi all been searching for a speed triple site and now i found one that looks the business.....Got a question about after market exhausts i`ve got a 2006 S3 with the TORS system fitted from new but i really like the look with the single can gp style as per the Arrow etc i will be able to fabricate a can myself and a link pipe but i need to know what the concensus is on the O2 sensor that is plumbed into the pipework after the joint where the pipes become double do i just disconnect it or will i need to fabricate a fitting for the sensor any help would be great. Ive also fitted a K n N airfilter for a bit more breath are there any other mods for a bit more power without spending a fortune Thanks all
ginja1000 is offline   Reply With Quote Quick reply to this message
Old 01-10-2008, 06:09 PM   #10 (permalink)
Senior Member
Formula Extreme

Join Date: Apr 2006
Location: Greenville, South Carolina
Posts: 919
You either need to fab in a fitting or use one of the sensor eliminators that fools the ECU into thinking you have one hooked up. Otherwise you are going to throw a CEL code. It is a standard bung that you can pick up at any exhaust shop.
dr_gallup is offline   Reply With Quote Quick reply to this message
Sponsored Links
Advertisement

Reply

Quick Reply
Message:
Options

Register Now

In order to be able to post messages on the Triumph Forum: Triumph Rat Motorcycle Forums forums, you must first register.
Please enter your desired user name, your email address and other required details in the form below.
User Name:
If you do not want to register, fill this field only and the name will be used as user name for your post.
Password
Please enter a password for your user account. Note that passwords are case-sensitive.
Password:
Confirm Password:
Email Address
Please enter your valid email address, that can receive an automated confirmation message. Otherwise, you won't be able to gain full access.
Email Address:

Log-in

Human Verification

In order to verify that you are a human and not a spam bot, please enter the answer into the following box below based on the instructions contained in the graphic.



Thread Tools
Display Modes

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are On


Similar Threads
Thread Thread Starter Forum Replies Last Post
Another exhaust thread Dav1d Speed Triple Forum 4 12-08-2012 05:49 PM
The Exhaust(ing) Thread andy1100xx Street Triple Forum 554 10-13-2012 09:50 PM
Ultimate EXHAUST thread morvegil Sprint Forum 12 07-26-2010 07:41 PM
Exhaust super thread? Shaunlee Speed Triple Forum 6 06-30-2008 06:19 PM
Exhaust thread SP4invista Triumph SuperSports 3 07-24-2006 10:37 PM

Powered by vBadvanced CMPS v3.2.2

All times are GMT -4. The time now is 07:47 PM.



Powered by vBulletin® Version 3.8.7
Copyright ©2000 - 2014, vBulletin Solutions, Inc.
Search Engine Optimization by vBSEO 3.6.0
Motorcycle News, Videos and Reviews
Honda Grom Forum Harley Davidson Forum Honda 600RR Kawasaki Forum Yamaha R6 Forum Yamaha FZ-09 Forum
1199 Panigale Forum Roadglide Forum Honda CBR1000 Forum Vulcan Forum Yamaha R1 Forum Yamaha R3 Forum
Ducati Monster Forum Harley Forums Honda CBR250R Forum ZX10R Forum Star Raider Forum Yamaha Viking Forum
Suzuki GSXR Forum V-Rod Forums Honda Shadow Forum Kawasaki Motorcycle Forum Star Warrior Forum KTM Duke 390 Forum
SV650 Forum BMW S1000RR Forum Honda Fury Forum Kawasaki Versys Forum Drag Racing Forum Ducati 899 Panigale Forum
Suzuki V-Strom BMW K1600 Triumph Forum Victory Forums Sportbikes BMW NineT Forum
Volusia Forum BMW F800 Forum Triumph 675 Forum MV Agusta Forum HD Street Forum Suzuki GW250 Forum
Yamaha Motorcycles Victory Gunner Forum Honda Vultus Forum HD LiveWire Forum Ninja H2 Forum

Garage Plus vBulletin Plugins by Drive Thru Online, Inc.
