A couple of guys are going to diy this
Here are some things that will help

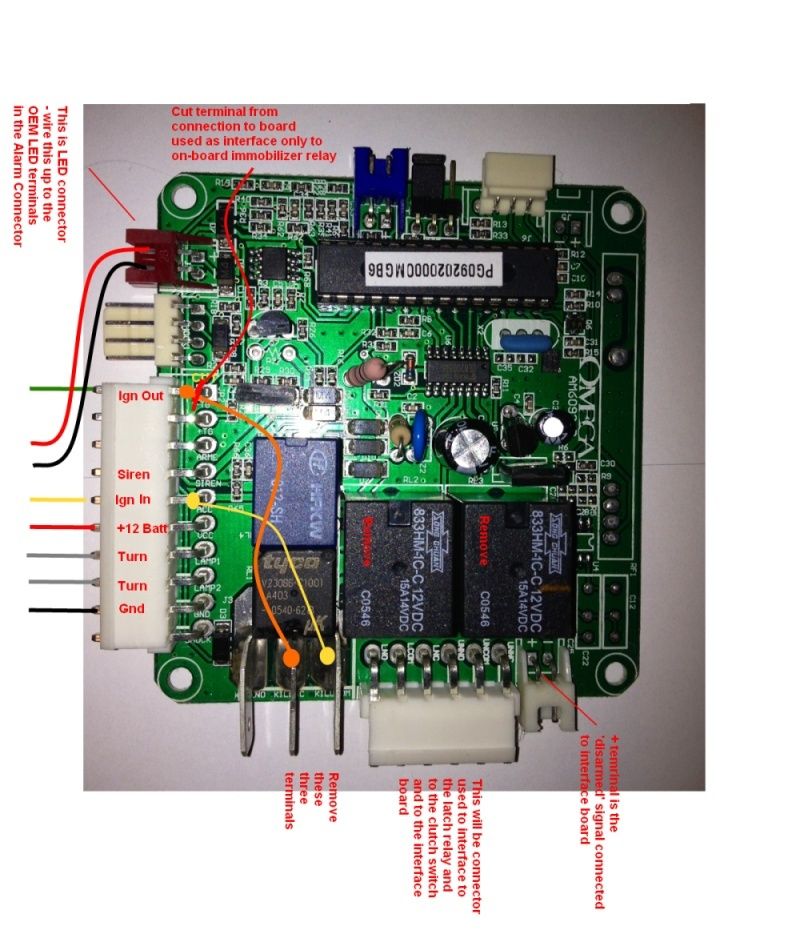

I remove the two door relays off the board (this gives more space to install the control board) - you can then use that terminal strip to interface to the power relay and clutch switch (you may not have to cut traces if you remove the relays and select three terminals that are not connected to anything else on the board)
I also remove those spade terminals - you don't have to, I just get rid of them.

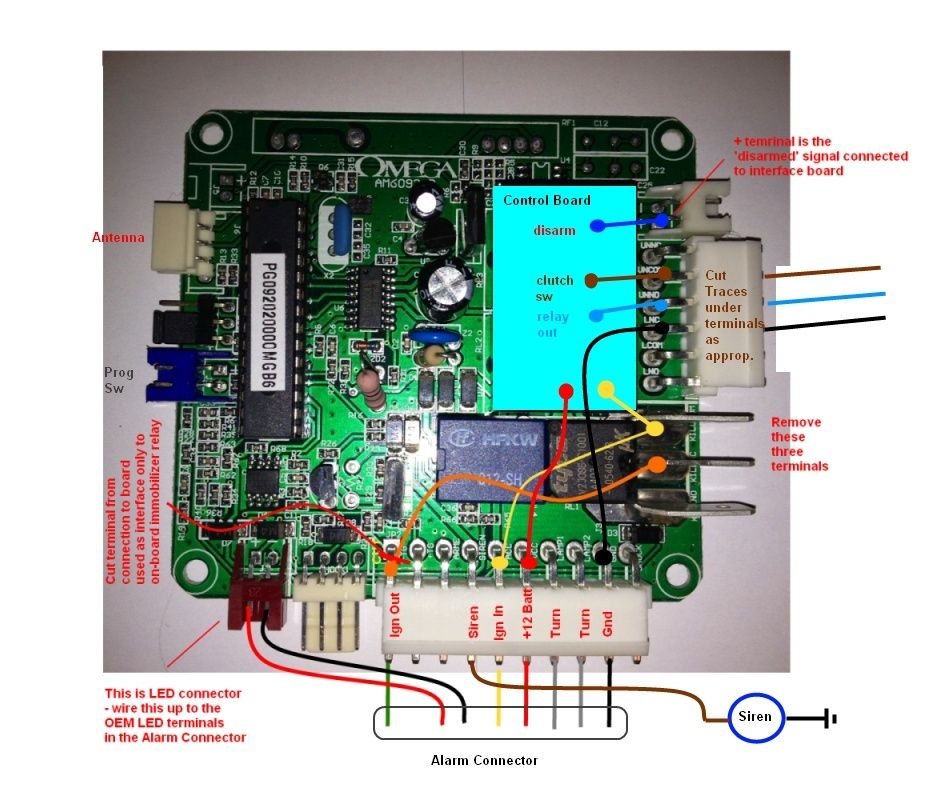

Then all the interconnects are shown - note that you feed the original Sombra LED wires over to the alarm connector and you will have to cut one of the terminals off the board to create a 'free' terminal to connect over to the immobilizer cut relay.
The red (const power) input and the two lamp outputs are fused
On alarm connector, wire as per the master diagram - needs 3-5 jumper in place as per the OEM bypass - the 1-2 connection will be the immobilizer circuit off the alarm.
Any questions, let me know.
