Classic, Vintage & Veteran For Coventry and Meriden Models. Anything pre-Hinckley goes.

Reply

LinkBack Thread Tools Display Modes
Old 05-03-2009, 06:10 PM   #1 (permalink)
New Member
Production 125

Join Date: May 2009
Posts: 6
boyer electronic ignition help

I've replaced my old point system of my 68' trophy with a boyer system and can't figure out how to start the timing. Do I set timing as if there where points, or do I just bring the right piston to TDC? I have the Boyer instructions, but point 16 just says "Set engine to the full advance timing mark on compression".
68tr6c is offline   Reply With Quote Quick reply to this message
Sponsored Links
Advertisement

Old 05-04-2009, 05:13 AM   #2 (permalink)
Member
Grand Prix 250
Main Motorcycle: Triumph T140V 1976

Join Date: Jun 2008
Location: West Midlands UK
Posts: 66
Full Advance

Quote:
Originally Posted by 68tr6c View Post
I've replaced my old point system of my 68' trophy with a boyer system and can't figure out how to start the timing. Do I set timing as if there where points, or do I just bring the right piston to TDC? I have the Boyer instructions, but point 16 just says "Set engine to the full advance timing mark on compression".
The service bulletin, 294 issued in Feb 68, illustrates changes in the way the B (650) engines were referenced for full advance.
However, in all cases this is stipulated as 38deg BTDC.
So in answer to your query, this is the setting, not TDC.

Good luck
Rochdale Cowboy is offline   Reply With Quote Quick reply to this message
Old 05-04-2009, 04:53 PM   #3 (permalink)
Member
Supersport 400
Main Motorcycle: '71 Bonneville

ViLe's Avatar

Join Date: Aug 2006
Location: Finland
Posts: 95
Yep, I'm with Rochdale

Do you have the slots in the crank, with a small hole behind the timing side (right hand) cylinder at the base, where with a bolt you can locate the fully advanced (38 BTDC), and the TDC positions? My '71 has it, can't remember whether '68 should have it.

Anyhow, I set my Boyer with the engine fully advanced, then first with the red dot lining up through the hole in the Boyer pickup plate, getting the engine to run and then revving to approx 5000 rpm and checking it with a strobe (still with the red dot appearing through the hole). Should work that way.

-Ville
ViLe is offline   Reply With Quote Quick reply to this message
Old 05-04-2009, 08:27 PM   #4 (permalink)
Senior Member
Powerbike
Main Motorcycle: 1976 T140V - 1983 TSS

thirdbike's Avatar

Join Date: Dec 2007
Location: Canada
Posts: 370
Other Motorcycle: 1950 Matchless G80
Extra Motorcycle: 1992 Yamaha XVZ13
I f I may can I make one small correction.

You should check your final timing adjustment with a strobe via the timing mark on your rotor and not on the Boyer timing plate. Checking the timing that way will only confirm the ignition timing relative to the Boyer's plate. Even if you were out ten degrees, the strobe will still confirm the plate's position.

What you really want to do is to check the timing of the spark relative to the crankshaft position - and by extension the piston's position. This you do with the strobe aimed at the timing marks on your rotor. Ref your bike briefly to 5000 RPM and the timing mark should stay steadily behind the indicator pin.
thirdbike is offline   Reply With Quote Quick reply to this message
Old 05-05-2009, 04:54 PM   #5 (permalink)
Member
Supersport 400
Main Motorcycle: '71 Bonneville

ViLe's Avatar

Join Date: Aug 2006
Location: Finland
Posts: 95
I stand corrected

For some reason I didn't have timing marks on my rotor (at least the type pictured in Haynes).

We did do temporary marks with nail polish, but in essence that's the same thing, right?

-Ville
ViLe is offline   Reply With Quote Quick reply to this message
Old 05-05-2009, 08:00 PM   #6 (permalink)
New Member
Production 125

Join Date: May 2009
Posts: 6
No, I don't the hole to the TDC indicator. Now when I use the timing wheel, am I going for 38 deg BTDC, or half that due to the cam turning half as fast?
68tr6c is offline   Reply With Quote Quick reply to this message
Old 05-10-2009, 06:23 AM   #7 (permalink)
Member
Grand Prix 250
Main Motorcycle: Triumph T140V 1976

Join Date: Jun 2008
Location: West Midlands UK
Posts: 66
Crank degrees

The normal timing references for valves and ignition are always crank degrees.
In this specific instance 38 degrees BTDC is definitely crank.

Good luck.
Rochdale Cowboy is offline   Reply With Quote Quick reply to this message
Old 05-10-2009, 10:38 AM   #8 (permalink)
Moderator
Moto Grand Prix
Main Motorcycle: T120V

Caulky's Avatar

Join Date: Jun 2008
Location: Isle of Wight England
Posts: 2,678
Other Motorcycle: 1960 Tiger Cub
Extra Motorcycle: 1971 Bsa A65L
If I may put in my 5 eggs.
When you use hole behind the barrels, there are two slots in the flywheel.
One is at TDC and the other is the timing mark (38 BDTC).
So initially, you need to find the TDC slot using a stick (long paintbrush handle or similar) in the plug-hole to verify you are in the correct slot. Careful...dont jam the `stick`!
Then put it in gear and rotate the rear wheel backwards to find the 38 BTDC slot. [It may be neccessary to rotate further and then go forwards to take up any backlash]

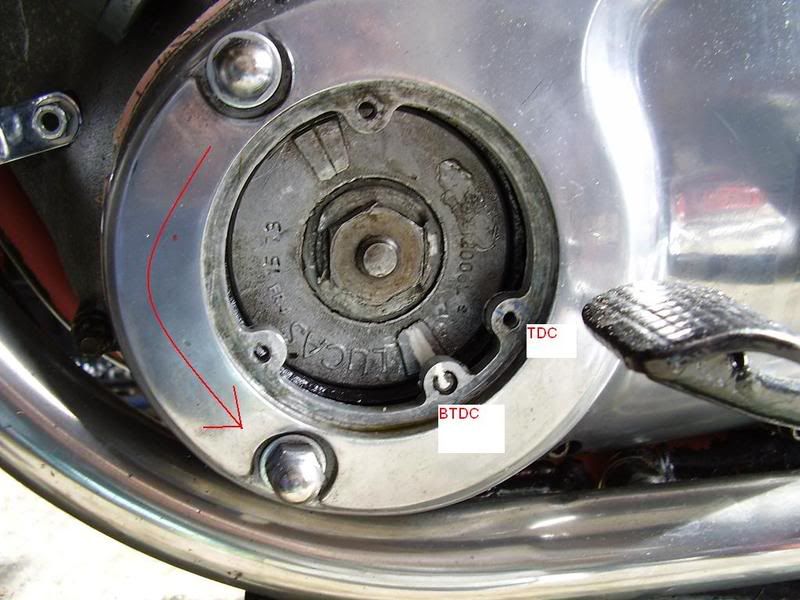

When the timing mark is central in the hole, the alternator timing mark should look look something like this:

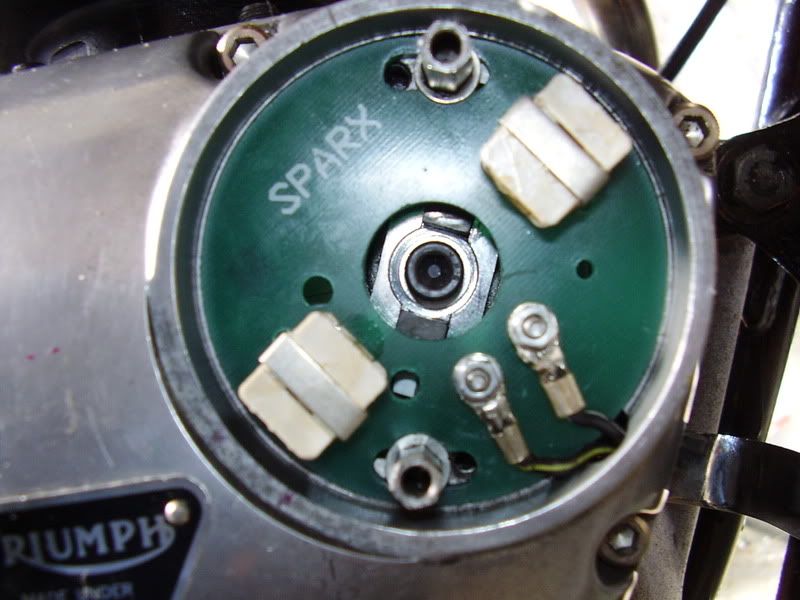

And if you had a Sparx kit, it should look like this:

Then when you start the engine, using a strobe you can adjust the ignition stator (above) for fully advanced on the alternator at high revs...whatever is recommended for your kit.
Caulky is offline   Reply With Quote Quick reply to this message
Old 05-12-2009, 12:42 AM   #9 (permalink)
Senior Member
Supersport 600
Main Motorcycle: '07 Scrambler; grn/silver

1759AG's Avatar

Join Date: Dec 2007
Location: Southern Maryland
Posts: 176
Other Motorcycle: '69 TR6 Tiger
Extra Motorcycle: '74 T150V Trident
Caulky,
Many thanks my friend for you "five eggs". With the photos makes perfect sense to my dense head.
I have a 69 TR6 I have been working on for some time. Obviously the cases have been split because I do NOT have the access hole behind the barrels. Then trying to figure the 38 degrees has been troublesome. I have a wheel and such, but you made it pretty clear!

Bryan
1759AG is offline   Reply With Quote Quick reply to this message
Old 05-12-2009, 01:16 AM   #10 (permalink)
New Member
Production 125

Join Date: May 2009
Posts: 6
Thanks, its amazing how two simple pictures tell more then any number of written references.
68tr6c is offline   Reply With Quote Quick reply to this message
